559172A 310017 3100-17 FRE76A 1003471 00010507 0010507 1948066 015635622 00115578 0115578 1102480 239083 239172

559172A 310017 3100-17 FRE76A 1003471 00010507 0010507 1948066 015635622 00115578 0115578 1102480 239083 239172 Bluebird Radiator

SKU:
RA4014-064
$512.00
(No reviews yet)
Description

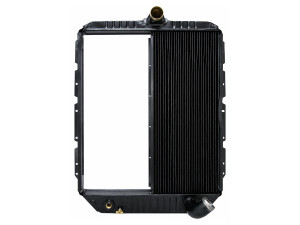

This radiator is a high-quality aftermarket replacement designed to fit applications originally equipped with OEM part numbers 559172A, 310017, 3100-17, FRE76A, 1003471, 00010507, 0010507, 1948066, 015635622, 00115578, 0115578, 1102480, 239083, and 239172.

  • Fits Freightliner, Blue Bird, and Oshkosh applications
  • Core height: 29-3/4 inches
  • Core width: 26-1/8 inches
  • Overall depth: 2-1/4 inches
  • 2-row core construction
  • 2 inch inlet located at the upper right, 6 inches from the edge
  • 2 inch outlet located at the lower left, 6 inches from the edge
  • 1/4 inch NPT port on the left side of the bottom tank, positioned 7 inches from the edge
  • 1/4 inch NPT port straight out of the bottom tank
  • No integrated oil cooler

This product ships via LTL freight.

Cross References: 559172A 310017 3100-17 FRE76A 1003471 00010507 0010507 1948066 015635622 00115578 0115578 1102480 239083 239172

Shipping Dimensions
Width:
48.00 (in)
Height:
20.00 (in)
Depth:
48.00 (in)
Weight:
150.00 LBS
