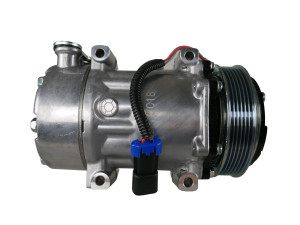

F69-6001-122 Sanden Compressor with 6 Groove 125mm Clutch (Aftermarket)


SKU: HV4007-003 Category: Tag:

High quality aftermarket AC Compressor replacement for OEM part numbers F69-6001-122 AC Compressor. 2005-2007 Cat C15 Engine, 2003-2018 Cummins ISX Engine Free shipping included!

AC Compressor kit also available

Kenworth & Peterbilt Trucks Sanden SD7H15HD A/C Compressor 12V with 6 Grooves F69-6001-122, F69-6001-121, LF0122, 18-5000
Sanden Models: 4039, 4424, 4731, 1027T6, 4424E, 4424R, 4424QS, 4424S

  • Volts: 12V
  • Clutch Diameter: 125mm
  • No. of Grooves: 6 groove
  • Belt Type: Serpentine
  • No. Comp. Cylinders: 7 cyl
  • Comp. Displacement (ci): 9.5 cu.in.
  • Factory Oil Charge: 300cc Oil
  • Oil Type: PAG100
  • Fitting Port Position: Lateral
  • Fitting Style: Top O-ring Pad
  • Head Type: GSA
  • Wire Type: 2 Wire Female Packard #15300002
  • Model: SD7H15HD
  • Mounting Type: Direct Long
  • Refrigerant Type: R134a
  • Rotation: CW
  • Shaft Type: Check clutch shaft type
  • Diode Protection: w/diode

If you are replacing the HVAC system in a Kenworth, consider replacing your Kenworth heater box with a stainless steel unit.

Additional information

Weight 15 lbs
Dimensions 18 × 13 × 13 in
