(A video script for this video can be found towards the bottom of this page.)

This video will show you how to install the fresh air filter kit for your Kenworth truck. This kit would be suited for those with W900, T800, and T600 trucks that want to keep their fresh air, but would also like to keep as much dust a debris out of the heater core and evaporator. Some of our customers will purchase this fresh air filter kit as an addon with one of our Premium stainless steel Kenworth heater boxes.

Step 1 – Open your hood.

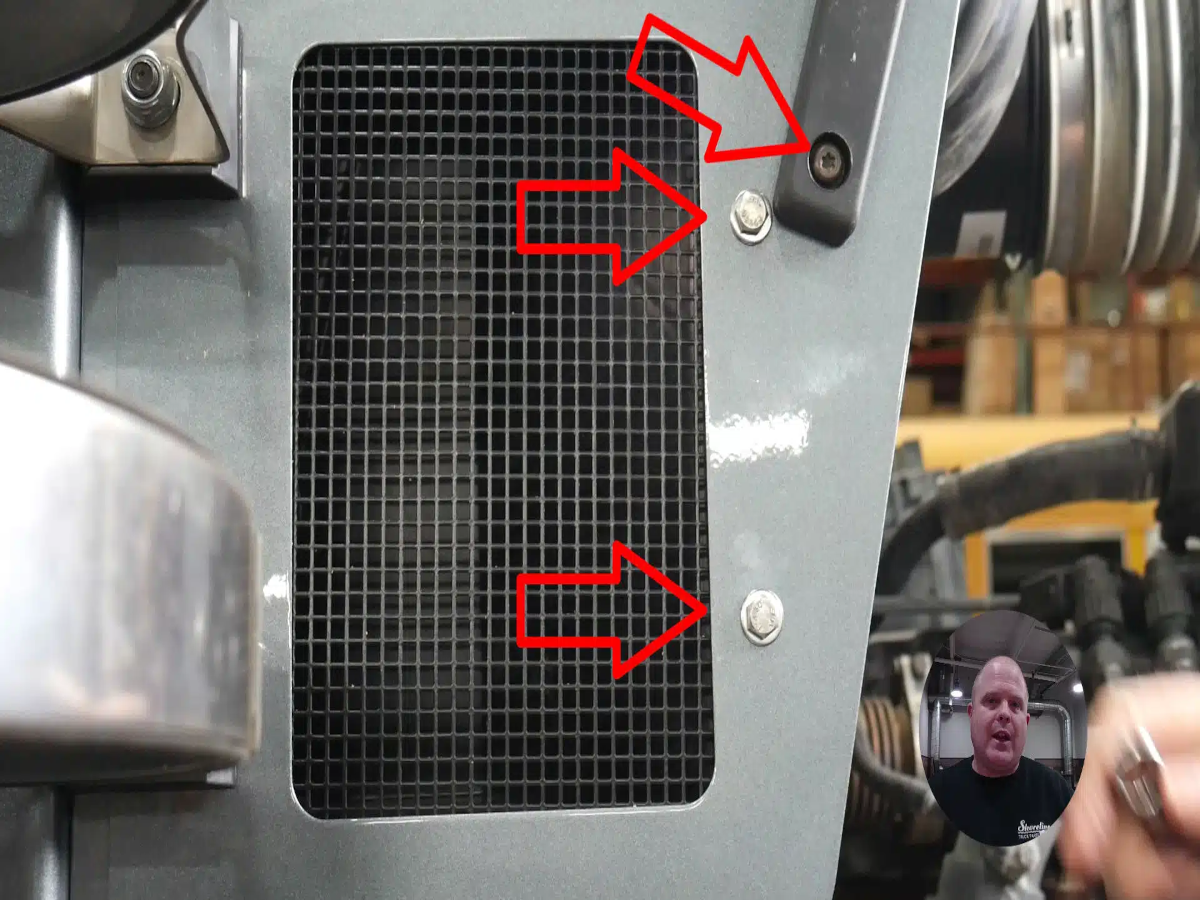

Step 2 – Remove the lower two fasteners. (These are typically Philips’ head or Torx bit head fasteners.)

Remove Fasteners

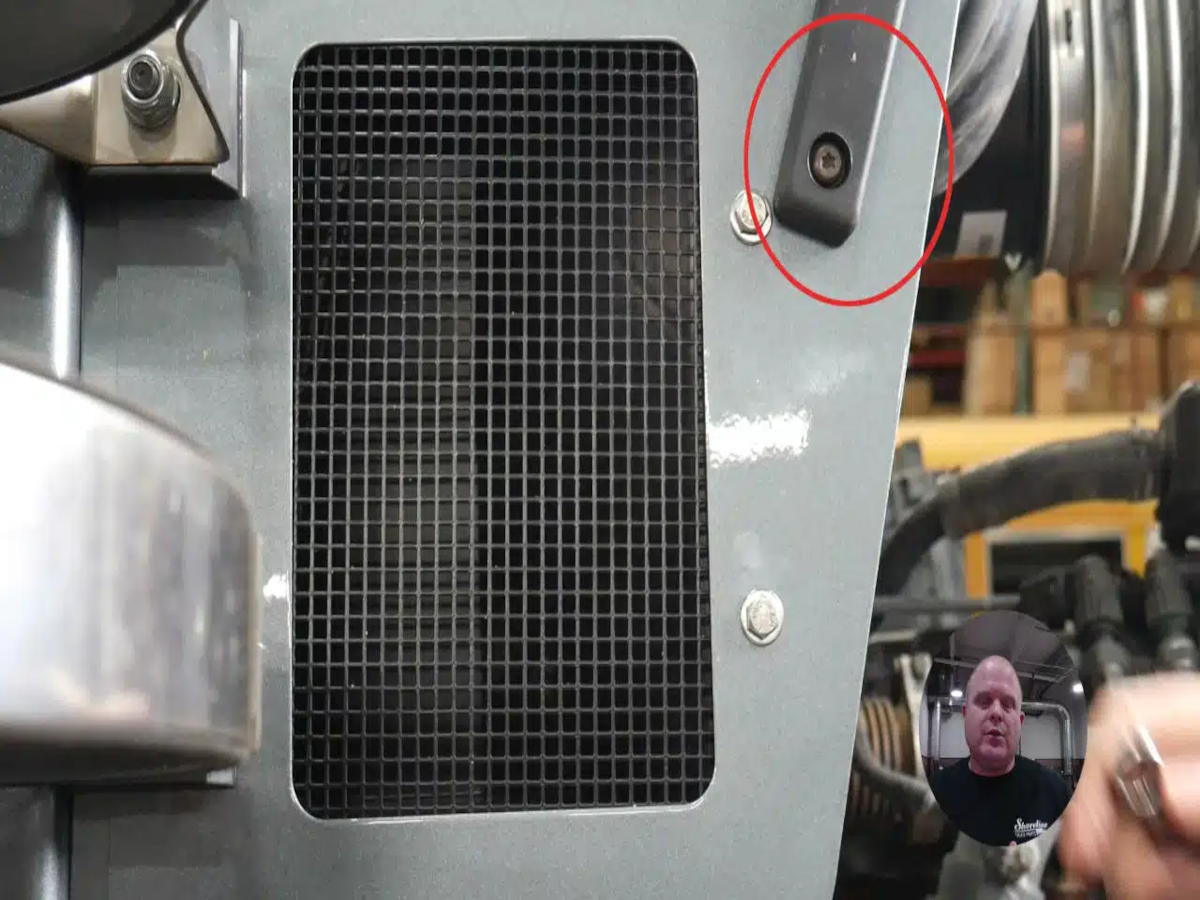

Step 3 – Loosen this Torx head fastener in order to give you more space between the fresh air intake and your truck.

Torx Head

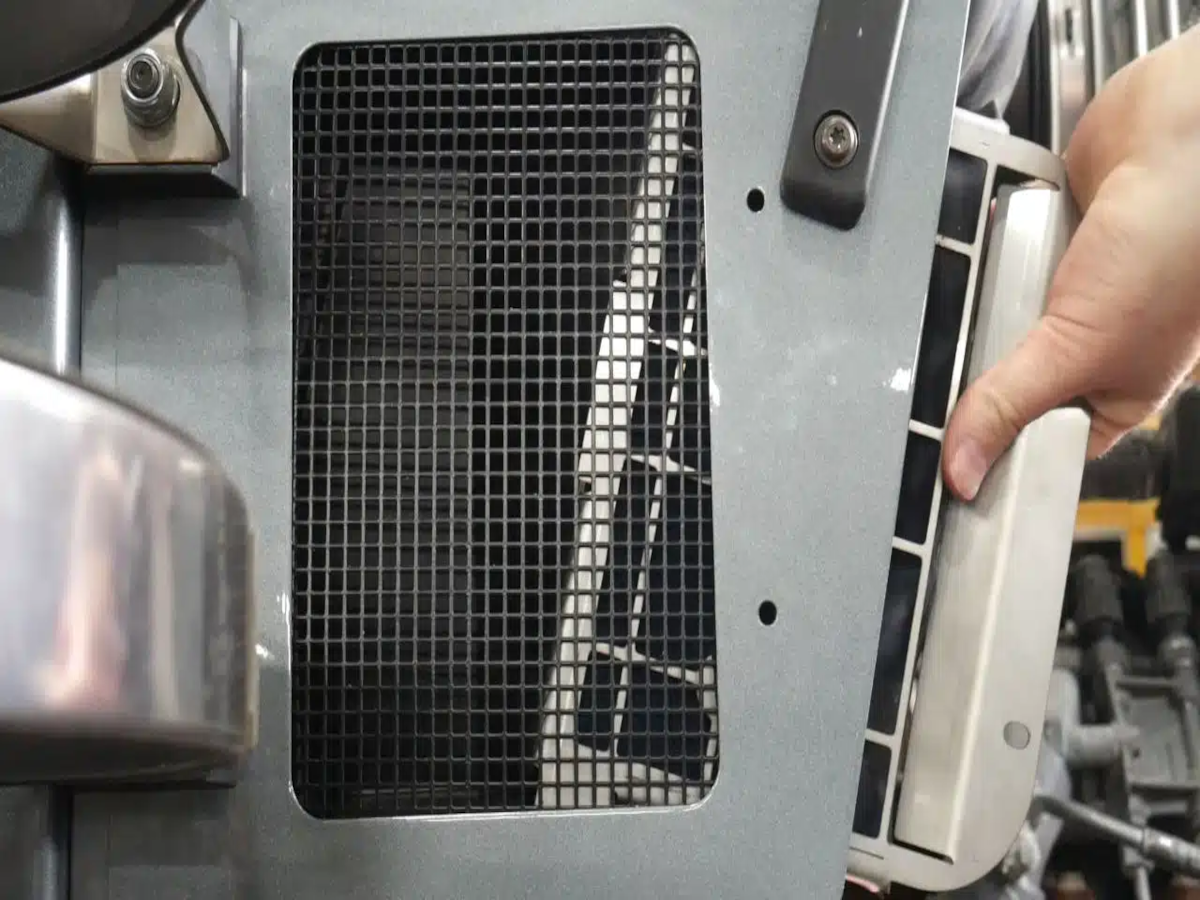

Step 4 – Slide the fresh air filter kit inside the fresh air intake. It might be helpful if you have an extra pair of hands available.

Slide in Filter kit

Step 5 – Reinstall the two supplied fasteners and tighten down the top Torx head fastener.

Remove Fasteners

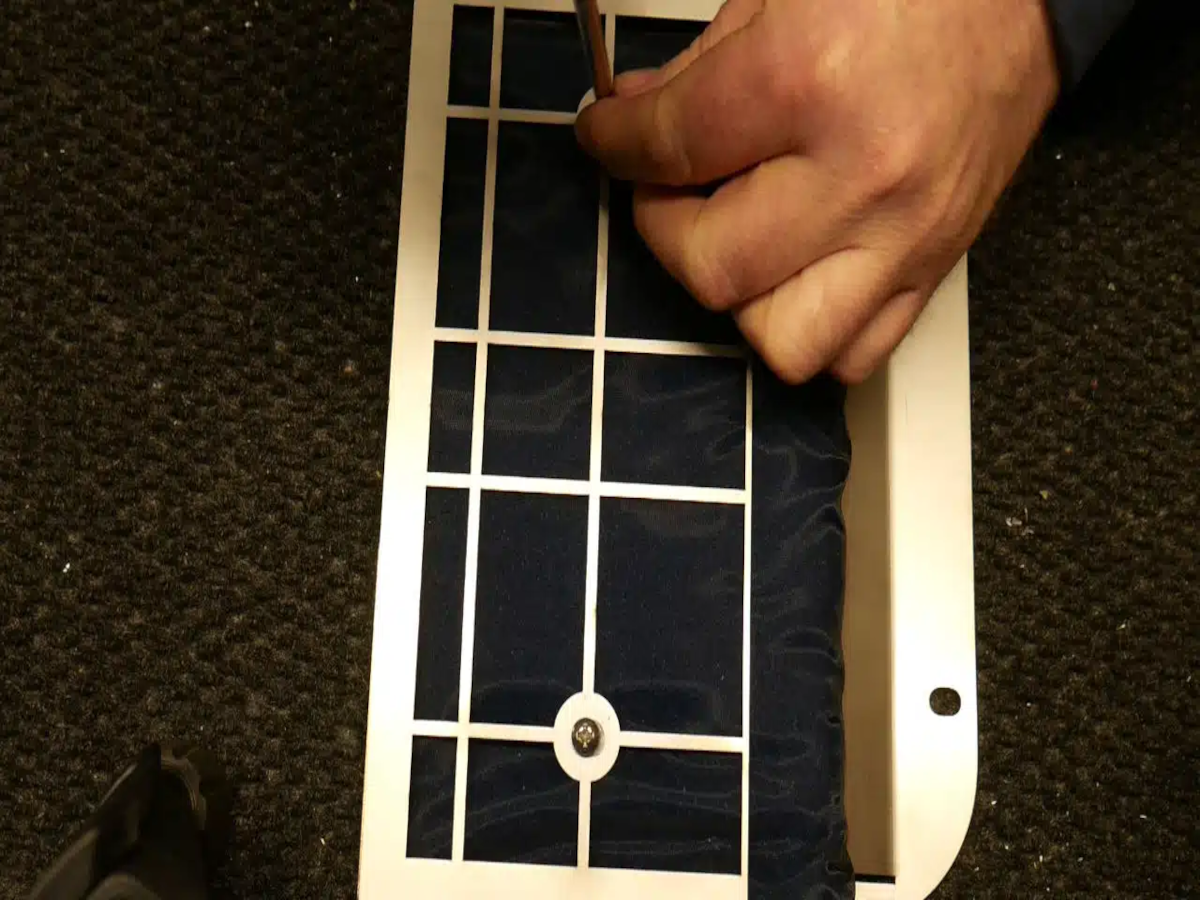

Step 6 – To replace/clean the filter, reverse these steps remove filter kit. Unscrew the two Philips head fasteners remove filter.

Filter removal

Video Transccript:

Hi, I’m Jon Lewis from Shoreline Truck parts.

In this video, I’m going to show you how to install the fresh air filter kit for your typical W900, T800, or T600.

Our filter is for someone who wants to keep their fresh air but also wants to block as muc dust and debris from their heater core evaporator.

This filter is made with water resistant material and is mounted inside your fresh air intake and in order to help keep your filter from icing over in the winter have links in the description below. You can check it out.

Also make sure you like, subscribe, comment in the comments below and do all that kind of YouTube stuff. Otherwise let’s get started on this video right here.

[Cue Intro]

I have a picture of the fresh air filter mounted inside the fresher intake to give you an idea of where it mounts in the fresh air. Now, I’m going to show you how you would install the fresh air filter if your fresh air intake is already mounted to the box and to the truck, and I’m going to draw your attention to these three fasteners right here.

The lower two are typically Phillip’s or Torx, bit heads. In this case, someone put in some hex head bolts, whichever, there’s gonna be two fasteners here that have to be removed once these are removed, this top one right here needs to be loosened

You’ll have enough room to slide the the fresh air filter kit into the fresh air intake. Once the filter kit is set in place and you can then use the supply fasteners to secure the pressure intake back onto the side of the truck. We also want to make sure that we tighten back. down the fastener that are located on top and then you’re done.

In order to clean the unit,you just reverse your steps. Remove the fresh air filter kit, unscrew these two screws here unscrew the two screws, remove the filter, wash it, replace it and reinstall and that’s it.

Thank you again for watching. Again. We have links to this product in the description below.

If you have any questions, you can reach out to us at shoreline truck parks dot com or

(616) 834-1503.

We would love to talk to you. Thank you very much and have a great day.
