Compressor Kit for CAT 15 2005 - 2007

Compressor Kit for CAT C15 2005 - 2007

SKU:
FG4007-003
$445.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

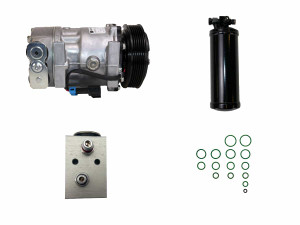

Compressor Kit for Compressor Kit for CAT 15 2005 – 2007 motors. Includes expansion valve, receiver drier, O-rings, and compressor. Free shipping available for lower 48 states and Canada.

Includes:

Compressor Details: Kenworth & Peterbilt Trucks Sanden SD7H15HD A/C Compressor 12V with 6 Grooves F69-6001-122, LF0122, 18-5000 Sanden Models: 4039, 4424, 4731, 1027T6, 4424E, 4424R, 4424QS, 4424S

  • Volts: 12V
  • Clutch Diameter: 125mm
  • No. of Grooves: 6 groove
  • Belt Type: Serpentine
  • No. Comp. Cylinders: 7 cyl
  • Comp. Displacement (ci): 9.5 cu.in.
  • Factory Oil Charge: 300cc Oil
  • Oil Type: PAG100
  • Fitting Port Position: Lateral
  • Fitting Style: Top O-ring Pad
  • Head Type: GSA
  • Wire Type: 2 Wire Female Packard #15300002
  • Model: SD7H15HD
  • Mounting Type: Direct Long
  • Refrigerant Type: R134a
  • Rotation: CW
  • Shaft Type: Check clutch shaft type
  • Diode Protection: w/diode

If you're replacing your HVAC system in a Kenworth, consider replacing your Kenworth heater box while you are at it. We build stainless steel aftermarket replacements for the Kenworth HVAC box.

Shipping Dimensions
Width:
13.00 (in)
Height:
13.00 (in)
Depth:
18.00 (in)
Weight:
20.00 LBS
