AC Compressor Kit for CAT C15 2008 - 2009

AC Compressor Kit for CAT C15 2008 - 2009

SKU:
FG4007-002
$419.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

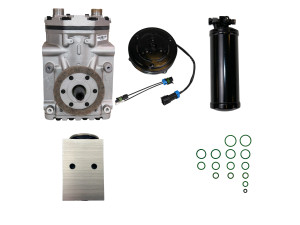

AC Compressor Kit for CAT C15 2008 - 2009 Includes:

  • Compressor F69-6001-122
  • Receiver Drier K251-571
  • Expansion Valve 1000308676
  • O-ring Kit

  Compressor Details: Kenworth & Peterbilt Trucks Sanden SD7H15HD A/C Compressor 12V with 6 Grooves F69-6001-122, LF0122, 18-5000 Sanden Models: 4039, 4424, 4731, 1027T6, 4424E, 4424R, 4424QS, 4424S

  • Volts: 12V
  • Clutch Diameter: 125mm
  • No. of Grooves: 6 groove
  • Belt Type: Serpentine
  • No. Comp. Cylinders: 7 cyl
  • Comp. Displacement (ci): 9.5 cu.in.
  • Factory Oil Charge: 300cc Oil
  • Oil Type: PAG100
  • Fitting Port Position: Lateral
  • Fitting Style: Top O-ring Pad
  • Head Type: GSA
  • Wire Type: 2 Wire Female Packard #15300002
  • Model: SD7H15HD
  • Mounting Type: Direct Long
  • Refrigerant Type: R134a
  • Rotation: CW
  • Shaft Type: Check clutch shaft type
  • Diode Protection: w/diode
Shipping Dimensions
Width:
13.00 (in)
Height:
13.00 (in)
Depth:
18.00 (in)
Weight:
20.00 LBS
